DAERIM ENG
DRE-178

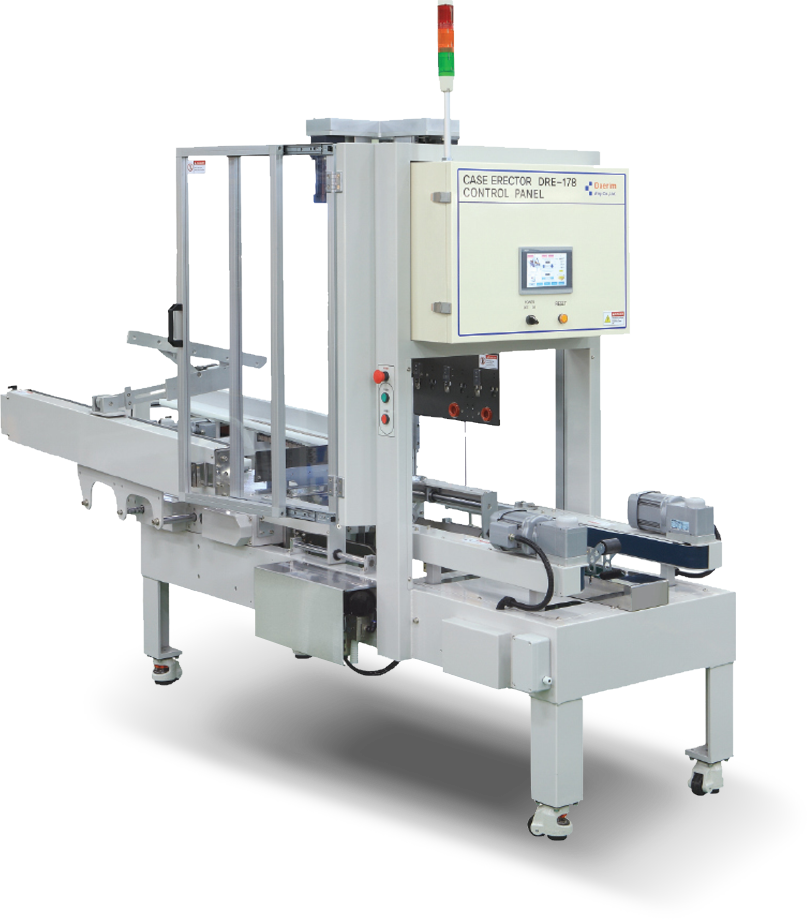

DRE-178 a high-performance box erector machine of maximum 25 boxes per minute
Fully Automatic High Speed Case Former (Max. Capacity : 25 Cases/min).
This Machine can measure cases and adjust itself automatically. The operators doesn't need to adjust the machine whenever different sized cartons is supplied. Our Machine can automatically adjust to match with new carton by one simple touch on the panel. You can save over 50 different sized cases in the memory.
Standard
Opposite
Size of Carton Box(mm)
Feasible box size for cartoning(mm)
| Min | Max | |
|---|---|---|
| A (Total Length) | 450 | 965 |
| B (Total Height) | 320 | 750 |
| C (Length) | 250 | 560 |
| D (Width) | 180 | 400 |
| E (Height) | 220 | 550 |
Specfication
| Machine Size | 2920L x 1100W x 2200H |
|---|---|
| Package Size | Max : 560L x 400W x 350H |
| Min : 250L x 180W x 120H | |
| Capacity | 16-15 Box/min |
| Power Supply | 220V or 380V x 3PH x 60Hz |
| Air Supply | 5-6Kg/㎠ |
| Electric Power | 0.5 Kw |
